Walk into any truck depot in Australia or talk to fleet managers who’ve been in the industry for years, and you’ll hear high-performance Cummins engines mentioned repeatedly as a benchmark for reliability and efficiency. The Indiana-based manufacturer has been building diesel engines since 1919, and what they’ve learned over that century shows in their current designs. Their engines power everything from pickup trucks to mining haul trucks, but it’s in the heavy-duty truck segment where Cummins has really established dominance through a combination of clever engineering and relentless focus on real-world durability.
Inline-Six Configuration Advantages
Cummins stuck with inline-six cylinder layouts when other manufacturers were experimenting with V-configurations, and that decision has proven smart. The inline-six is inherently balanced, with overlapping power strokes that produce smooth power delivery and minimal vibration. This balance means less stress on engine mounts, less fatigue on chassis components, and better longevity overall.

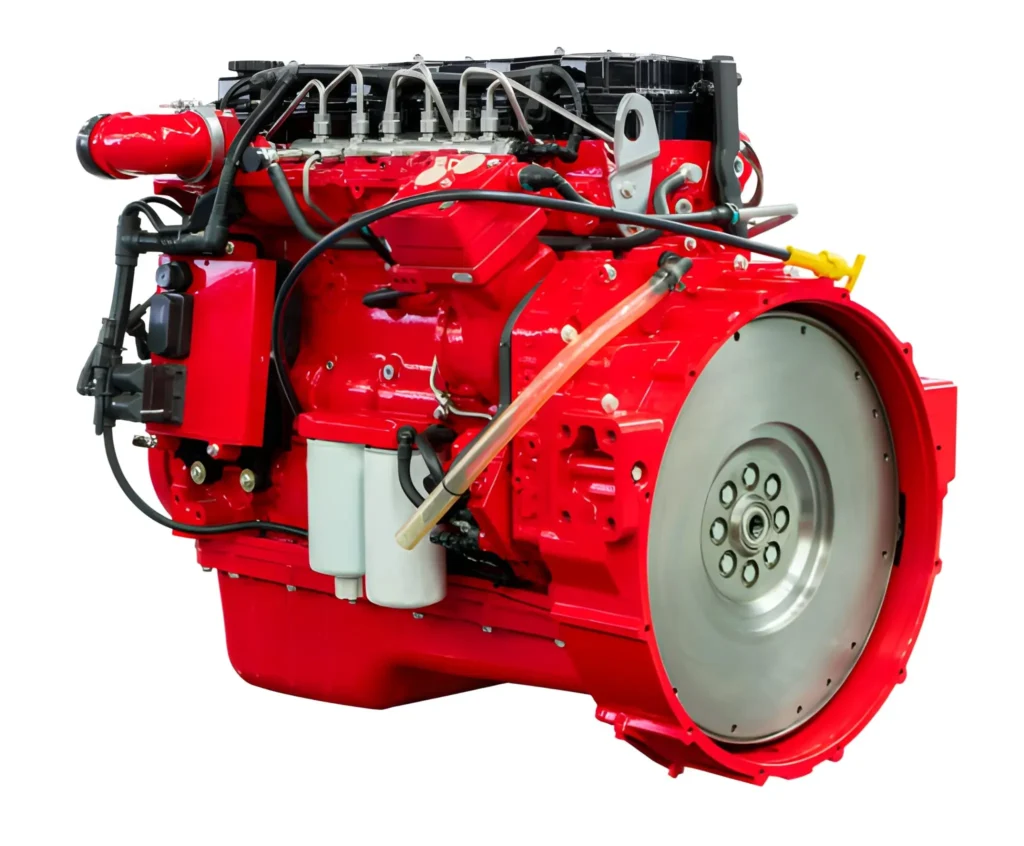

The ISX15 engine (now called X15) that powers most heavy Cummins applications is a 15-liter inline-six producing 400 to 605 horsepower depending on rating. The engine block uses compacted graphite iron instead of standard cast iron, which provides 75% higher tensile strength while weighing less. This allows thinner cylinder walls without sacrificing durability, which means more efficient cooling and better thermal management.
The bore and stroke dimensions (137mm x 169mm) create a long-stroke design that’s optimized for torque production rather than high RPM power. Peak torque of 2050 lb-ft (2780 Nm) arrives at just 1100 RPM and stays flat until 1600 RPM, giving drivers a massive working range where the engine pulls hard without needing constant gear changes.
Fuel System Technology That Actually Works
Cummins’ XPI (Extreme Pressure Injection) fuel system runs at injection pressures up to 2500 bar, which is among the highest in the industry. Higher pressure means finer fuel atomization, more complete combustion, and cleaner emissions. But what sets the XPI apart is the reliability – these systems regularly exceed 1.5 million kilometers before needing major service.
The injectors use a unique design with fewer moving parts than competing systems. Each injector has just one moving component (the needle valve) compared to systems with multiple internal parts that can fail. Simpler design means fewer failure points and easier diagnostics when something does go wrong.
Fuel economy on the X15 typically ranges from 1.8 to 2.2 kilometers per liter when fully loaded in highway operations. That might not sound impressive, but for a 15-liter engine moving 60+ tonnes, it’s competitive with anything else out there. The efficiency comes from that high-pressure injection, optimized combustion chamber design, and intelligent engine management.
Air Handling and Turbocharger Systems
The turbocharger on Cummins engines uses variable geometry technology that adjusts the turbine housing to optimize airflow across different RPM ranges. At low RPM, the housing narrows to increase exhaust gas velocity, which spools the turbo faster and reduces lag. At high RPM, it opens up to flow more air and prevent over-boosting.
Boost pressure management is handled by sophisticated software that monitors dozens of parameters and adjusts fueling and turbo geometry in real-time. The system can detect altitude changes (thinner air at elevation) and adjust accordingly so you maintain power in mountain passes. It also monitors intake air temperature and will reduce power slightly if things get too hot rather than risk engine damage.
The intercooler system (which cools compressed air from the turbo before it enters the engine) is oversized compared to minimum requirements. Cooler intake air is denser, which means more oxygen per cylinder charge and more complete combustion. The X15 maintains intake temperatures around 55-60°C even under sustained high load in hot weather.
Emissions Control That Doesn’t Kill Performance
Meeting modern emissions standards without sacrificing power or reliability has been challenging for all manufacturers, but Cummins has handled it better than most. Their SCR (Selective Catalytic Reduction) system uses DEF fluid to convert nitrogen oxides into harmless nitrogen and water vapor in the exhaust.
The key difference is in the implementation details. Cummins uses a larger DEF tank (typically 80-100 liters) compared to competitors’ 50-60 liter tanks, which means fewer fill-ups. The DEF lines are better insulated and heated to prevent crystallization in cold weather, which has been a major failure point on some other systems.
The DPF (Diesel Particulate Filter) regeneration process happens passively most of the time if the engine reaches proper operating temperature and load. Active regeneration (where extra fuel is burned to heat the DPF) only kicks in occasionally rather than constantly, which improves fuel economy and reduces maintenance needs.
Engine Brake Performance
The Cummins VGT brake uses the variable geometry turbocharger to create backpressure that retards engine rotation. This provides up to 600 horsepower of braking force, which is genuinely impressive. In practical terms, you can descend long grades at controlled speeds without touching the service brakes except for final stopping.
The system integrates with the transmission and vehicle braking systems through electronic controls. When you’re going downhill, the engine brake activates automatically based on road grade and vehicle speed, modulating intensity to maintain your set speed without manual intervention. This reduces driver fatigue and dramatically extends brake life.
Rebuild and Service Intervals
Cummins publishes rebuild intervals of 1.5 million kilometers for the X15 under normal operating conditions. The actual interval depends heavily on maintenance quality and operating conditions, but engines regularly exceed this with proper care. The design uses replaceable cylinder liners, which means you can rebuild the engine without machining the block.
Service intervals have stretched significantly with modern oil formulations. Oil changes are typically every 50,000-80,000 kilometers depending on operating conditions and oil analysis results. Valve adjustments are needed around every 500,000 kilometers rather than the 100,000km intervals that older engines required.
The aftertreatment system (DPF and SCR components) needs cleaning every 400,000-600,000 kilometers, which is longer than many competing systems. When cleaning is needed, it’s a straightforward process that most truck shops can handle rather than requiring specialized dealer equipment.
Cummins engines have earned their reputation through decades of proving they can handle whatever operators throw at them while delivering the fuel efficiency that keeps operating costs manageable.
